Chain for Mooring Buoys

Chain for Mooring Buoys

$159.00
$159.00
Sale Sold out
Shipping calculated at checkout.

SKU:

1220

No more frayed mooring lines!

From now on you can securely and easily attach to mooring buoys with our Mooring Buoy Chain.

The high-quality integrated stainless-steel chain prevents the lines from being chafed through and takes the worry out of tying up to mooring buoys.

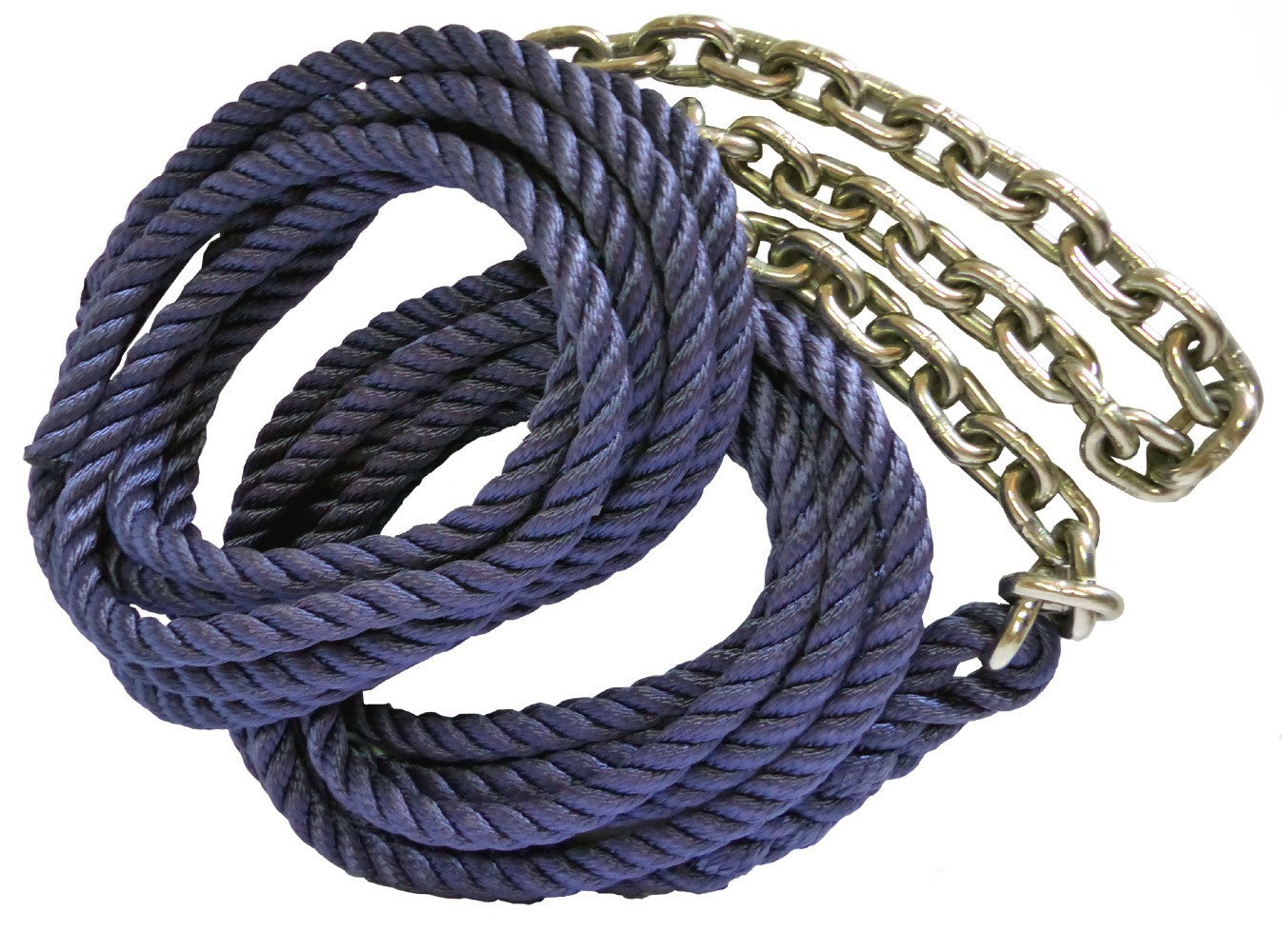

Our Mooring Buoy Chain, made of high quality Liros rope and high-quality stainless-steel chain, is ready-spliced and available in 3 different sizes for use on yachts from 10 to 20 m (32 to 65 ft).

  • 1220: For boats up to 10 m (32 ft)
  • 1221: For boats up to 15 m (49 ft)
  • 1222: For boats up to 20 m (65 ft)

The buoy chain is supplied with 2 lines on each end and is simply pulled through the buoy ring and secured crosswise to cleats on board.

Technical Data:
Chain: stainless-steel 1.4404 (316L)
Line: Polyester PES (Liros)




1220

1221

1222

Boat Length

10 m

(32 ft)

15 m

(49 ft)

20 m

(65 ft)

Chain Size

8 mm

(0.31 in)

10 mm

(0.39 in)

10 mm

(0.39 in)

Line Diameter

14 mm

(0.55 in)

18 mm

(0.70 in)

22 mm

(0.86 in)

Chain Length

1 m

(3.28 ft)

1 m

(3.28 ft)

1 m

(3.28 ft)

Line Length (2 ea.)

5 m

(16.4 ft)

6 m

(19.7 ft)

8 m

(26.2 ft)

Breaking Load

3,600 kg

(7,936 lbs)

6,000 kg

(13 227 lbs)

9,000 kg

(19,841 lbs)



Other helpful products:

  • 1039 Mooring Buoy Catch Hook
